Short answer: A mini split freezes up because air is not moving across the coil, or because the refrigerant level is low. Trane lists a dirty filter as one cause, so it is a useful owner check. Frost on the outdoor unit in winter heat mode can be normal, because the unit defrosts itself. Ice on the indoor unit, or ice that keeps coming back, means turn the unit off, let it thaw, and fix the cause before you run it again.
First, where is the ice?
This one question changes everything, so walk to the unit and look.

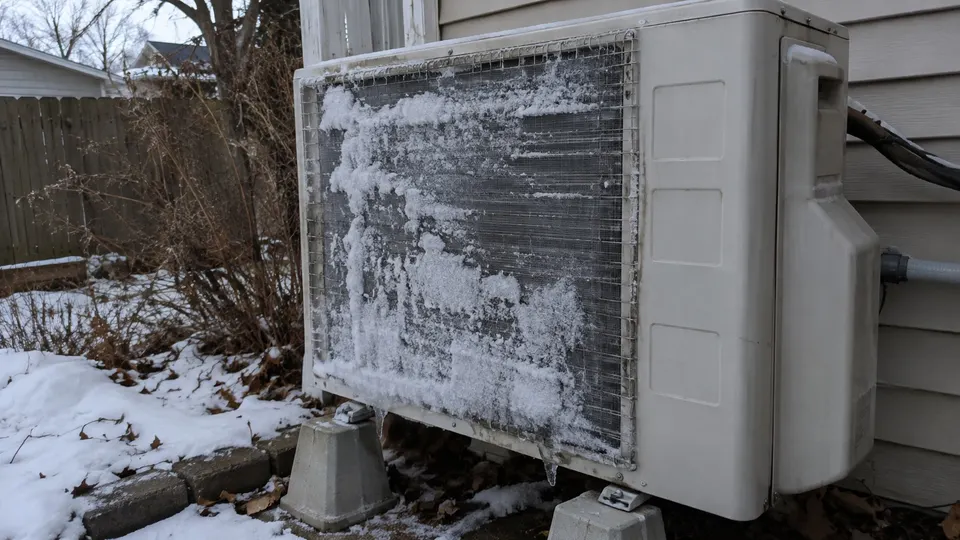

Ice or frost on the outdoor unit in winter, while the unit is heating. This is often normal. In heat mode the outdoor coil gets cold, and frost can form. Lennox says frost can begin forming below about 47°F (8°C), and that the unit then runs a defrost cycle, generally 3 to 15 minutes, with steam around the outdoor unit. Your display may show DF. See what DF means on a mini split.
Ice on the indoor unit, on the front, the coil or the thin copper line, while cooling. This is not normal. It means the indoor coil is getting too cold.
Ice on the thicker or thinner copper lines or the outdoor unit while cooling. Trane lists frozen refrigerant lines and icing at the outdoor unit as signs of a frozen system. Treat it like the indoor ice problem.
Why a mini split freezes up
Trane and Lennox both explain it the same way. The coil gets very cold, and moisture from the air freezes on it when something throws off the balance. The causes they list:
- A dirty air filter. It cuts the airflow over the coil. Trane puts this first.
- A dirty indoor coil. Dust can act like a blanket on the coil. Trane says to hire a professional for coil cleaning instead of doing it yourself from a video.
- Blocked airflow. A couch, curtain or shelf blocking the indoor unit's air path can do it. Trane and Lennox both list blocked airflow.
- Cooling when it is cold outside. Lennox says running the AC when it is below about 60°F outside can cause freezing.
- Low refrigerant. Trane says this comes from wear, a poor installation or a leak. It can cause freezing on one or more indoor units.
- A faulty thermostat or sensor. Trane says that if the ice appears overnight, the control not shutting the system off as temperatures fall can be the reason.
What to do right now
If you see ice on the indoor unit, work through these checks. Trane advises turning off cooling and not scraping the ice.
- Turn the unit off at the remote. Do not run it with a frozen coil. Trane says that can do serious damage.
- Put a towel under the unit. As the ice melts, water will drip. You will see the dripping start and then slow down.
- Do not chip or scrape the ice. Trane warns that it can damage the coil and cause a refrigerant leak. Do not use a heat gun or hot water.
- Switch to fan only. Lennox says that running the fan without cooling helps thaw the ice. On a mini split, set the remote to Fan mode. This can take a few hours.
- Clean the filter while you wait. Slide the filter out and clean it. The steps are in how to clean a mini split.
- Clear the airflow. Move anything blocking the front of the indoor unit. Walk outside and clear leaves and debris from the outdoor unit.
- Do not restart until all the ice is gone. Then restart in Cool mode and watch it for the next day.
Do not use the DF or defrost function to melt indoor ice. Trane says defrost mode only works for ice on the outdoor coil when the heat pump is heating.
What the result tells you
| What you see | Likely cause | What to do |
|---|---|---|
| Ice on the indoor unit, filter is gray | Dirty filter | Thaw, clean the filter, restart |
| Ice returns after a clean filter | Low refrigerant, dirty coil, or airflow problem | Stop and call a technician |
| Frost on the outdoor unit in winter heat mode, melts within minutes | Normal defrost | Nothing to fix |
| Outdoor unit keeps icing, defrost runs more than 15 minutes or repeats within an hour | Possible fault (Lennox gives these two limits) | Call a technician |
| Hissing or whistling near the unit, or oily residue on the lines | Possible refrigerant leak | Turn off, call a technician |
| Ice only in the morning after a cool night | Control or sensor, or running cooling in cold weather | Do not cool when it is cold outside, call if it keeps happening |
When to stop and call a technician
Trane says that only a trained HVAC professional can detect and fix a refrigerant leak and safely recharge the system. They also say it can involve leak detection, pressure testing and tightening the flare fittings on the refrigerant lines.
Call a licensed technician if:
- The ice comes back after you cleaned the filter and cleared the airflow
- You hear hissing or whistling, or see oily residue on the lines or the coil
- The outdoor unit ices up and the defrost keeps repeating
- The unit is new. Call the installer first, since many installers include a one year labor warranty, according to Trane.
Do not add refrigerant yourself, open the cabinet, or touch the refrigerant lines.
Keeping it from freezing again
- Clean the filter on a schedule. Trane explains that a clogged filter restricts airflow and can contribute to a frozen coil.
- Keep furniture, curtains and shelves away from the indoor unit.
- Keep the outdoor unit clear of snow, leaves and shrubs, with about two feet of space around it.
- Do not run cooling when it is cold outside.
- Book a yearly tune-up. A technician can check the coil and the refrigerant connections before they turn into ice.
Related reading
- If your unit is a Midea and shows a code, check the Midea error code guide.
- Poor airflow around the outdoor unit can add to icing, so review the outdoor unit clearance.
Sources
- Trane: Top 5 Causes of Frozen AC Coils and How to Fix Them
- Lennox: Why Is Your AC Unit Freezing Up?
- Trane: How to Identify and Fix Mini-Split Refrigerant Issues
- Lennox: Mini split not working in heat mode
The Trane and Lennox freeze-up pages are written for central air conditioners and heat pumps. They are not model-specific mini-split repair procedures. Follow your unit's own manual.
